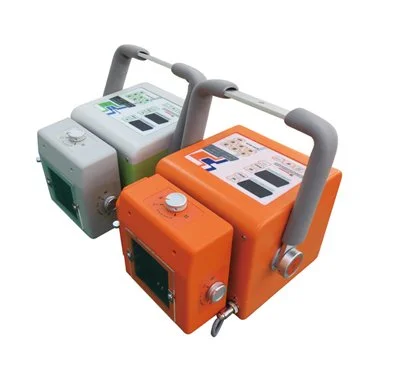

Ecotron Portable X-Ray
Compact high frequency portable x-ray machines that provide high resolution imaging at lower dosages.
Available in two models : EPX-F1600 (90kV/30mA) 1.6KW and EPX-F3200 (100kV/60mA) 3.2KW
Model Comparison
| EPX-F1600 | EPX-3200 | |
|---|---|---|
| Max Output Power | 1.6KW | 3.2KW |
| Generator Frequency | 100KHz | 70KHz |
| kV Range | 40~90KV | 40~100KV |
| mA Range | 12~30mA | 25~60mA |
| mAs Range | 0.4~100mAs | 0.4~100mAs |
| Focal Spot | 1.2mm * 1.2mm | 2.0mm * 2.0mm |
| Target Angle | 19 | 16 |
| Anode Heat Storage | 10KHU | 40KHU |
| Input Voltage | 110V / 220V | 200V / 240V |
| Phase/Frequency | Single / 50~60Hz | Single / 50~60Hz |
| Dimension(mm) | 335*153*330 | 360*200*190 |
| Packing Size(mm) | 520*400*330 | 520*400*330 |
| Net weight | 6.8KG | 12KG |
| G-weight | 20KG | 22KG |
